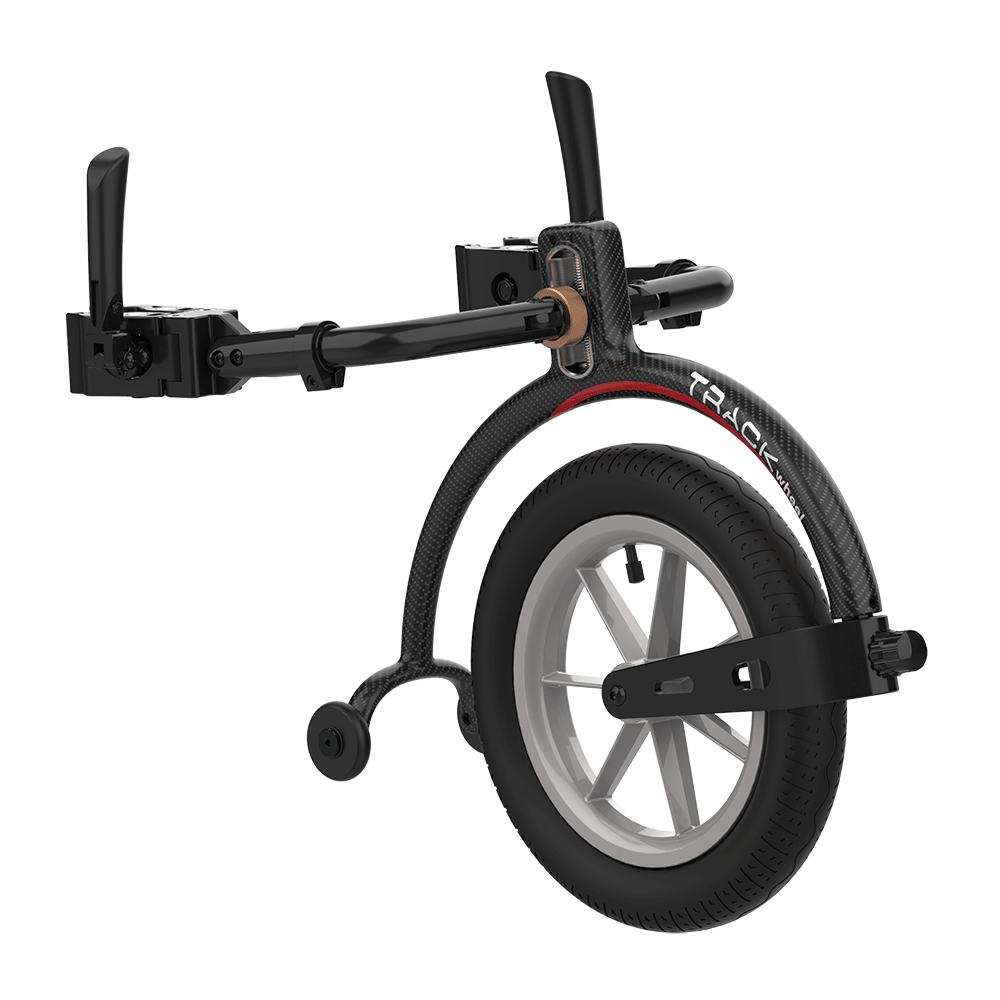

Trackwheel

Gjør rullestolen din til en sporty trehjuling og opplev en ny følelse av hastighet og frihet! Trackwheel er ideelt for utflukter både i byen, i skogen eller på stranda. Trackwheel er lett å montere og komfortabel å kjøre med.

Spesifikasjoner Kontakt oss

Spesifikasjoner

Tekniske spesifikasjoner

	DOUBLE ARM carbon	DOUBLE ARM aluminium	SINGLE ARM carbon	SINGLE ARM aluminium
Total length	570 mm	570 mm	670 mm	670 mm
Total width	250 mm	250 mm	80 mm	80 mm
Total height	440 mm	440 mm	360 mm	360 mm
Total weight	4.5 kg	4.7 kg	2.65 kg	2.87 kg
Wheel size	12"	12"	12"	12"
Air pressure in tyre	2.5 bar	2.5 bar	2.5 bar	2.5 bar
Angle adjustment range (for wheelchair legrest angle)	60°-110°	60°-110°	75°-95°	75°-95°
Height adjustment range (from floor to the bottom of clamping)	210 mm + (0-50, 110, 125, 140 mm)	210 mm + (0-50, 110, 125, 140 mm)	-	-
Tube diameter range	19-40 mm	19-40 mm	15-32 mm	15-32 mm
Maximum user weight	140 kg	140 kg	140 kg	140 kg

←
